Home PD Power Adapter 20W USB C PD 3.0 Charger UL FCC For Ipad Iphone 12 Mini

Name: Home PD Power Adapter 20W USB C PD 30 Charger UL FCC For Ipad Iphone 12 Mini
Brand: Fullpower
Price: 1 USD

Quality Home PD Power Adapter 20W USB C PD 3.0 Charger UL FCC For Ipad Iphone 12 Mini for sale

Brand Name : Fullpower

Model Number : DO03

Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc

Place of Origin : China

MOQ : 1000PCS

Payment Terms : T/T, Western Union

Supply Ability : 100000PCS/Day

Delivery Time : 30 working days

Packaging Details : Individul Pe Bag Packing or others

Item : 20W UL FCC Liste Home Charger Pd 3.0 Usb C

Input : 100-240V 50/60HZ

Output : PD: 5V3A, 9V2.22A, 12V1.67A

AC Plug : AU EU US UK

DC Connector : Customized

USB Type : USB-C

Material : ABS+PC

Color : Black, White Or Others

Protection : OCP, OLP, OVP And Others

Logo : Fullpower Or Custom Make

Warranty : 3 years

Contact Now

20W UL FCC Liste Home Charger Pd 3.0 Usb C Fast Charger 20 W For Ipad Iphone 12 Mini

Shenzhen Yingyuan electronics Co.,ltd

A leading manufacturer in Shenzhen, has been specialized in power supply products for over 16 years. Main products are USB Chargers / Power Adapter / battery charger. Focusing on AC adapter marketing and manufacturing, SUNSHINE
has scientific, intact and efficient quality management system, which extends from product designing, raw material control, on-spot
production management to after-sale services with constant, stable and reliable quality assurance. ISO9001:2008 system is fully
implemented in our management. Our products have passed most of safety approvals in the world,including UL, cUL, FCC, PSE, GS,
CE, ROHS,SAA, CCC, C-tick,ETL, KC,CB,REACH, etc.

Data-sheet

FEATURES		SAFETIES APPROVALS		PRODUCTS PICTURE
v EFFICIENCY VI v 20W PD OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v Many colors for choice		v UL,FCC v CB,CE,UKCA v SAA,PSE,CCC,KC v REACH, ROHS
TYPICAL MODEL LIST
I/P Voltage	Typical model	Output Voltage	Output Current	Ripple & noise		Efficiency Level
90 - 264V 47 - 63HZ	DO03	5V	3000mA	30mV		6 L VI
	DO03	5V	3000mA	30mV		6 L VI
	DO03	9V	2220mA	40mV		6 L VI
	DO03	9V	2220mA	40mV		6 L VI
	DO03	12V	1670mA	50mV		6 L VI
	DO03	12V	1670mA	50mV		6 L VI
INPUT SPECIFICATIONS			GENERAL SPECIFICATIONS
Input Voltage		90〜264VAC	Primary to Secondary		50MΩ MIN
Input Frequency		47〜63Hz	Efficiency		VI
Input Current		0.5A Max	Standby Power		0.2W MAX
Inrush Current		40A Max	Leakage Current		0.25mA MAX
OUTPUT SPECIFICATIONS			ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range		5V / 9V / 12V	Operating Temperature		10°C~40°C
Output Current Range		100mA-3000mA	Cooling		Convection
Output Power Range		20W Max	Temperature Coefficient		0.05%/°C
Short Circuit Protection		Automatic Recovery	Humidity		5~95%RH(non-condensing)
Over-Current Protection		Automatic Recovery	Storage Temperature		-20°C~+80%°C
Ripple and Noise		100mVp-p max	PHYSICAL SPECIFICATIONS
Turn On Time		20-30mS normal	Physical Specifications		43mm 28mm 41mm
Line Regulation		1% max	SAFETIES STANDARD
Output Regulation		±5%	Safeties Standard		62368 / 60950 / 61558

Product Pictures

Home PD Power Adapter 20W USB C PD 3.0 Charger UL FCC For Ipad Iphone 12 Mini

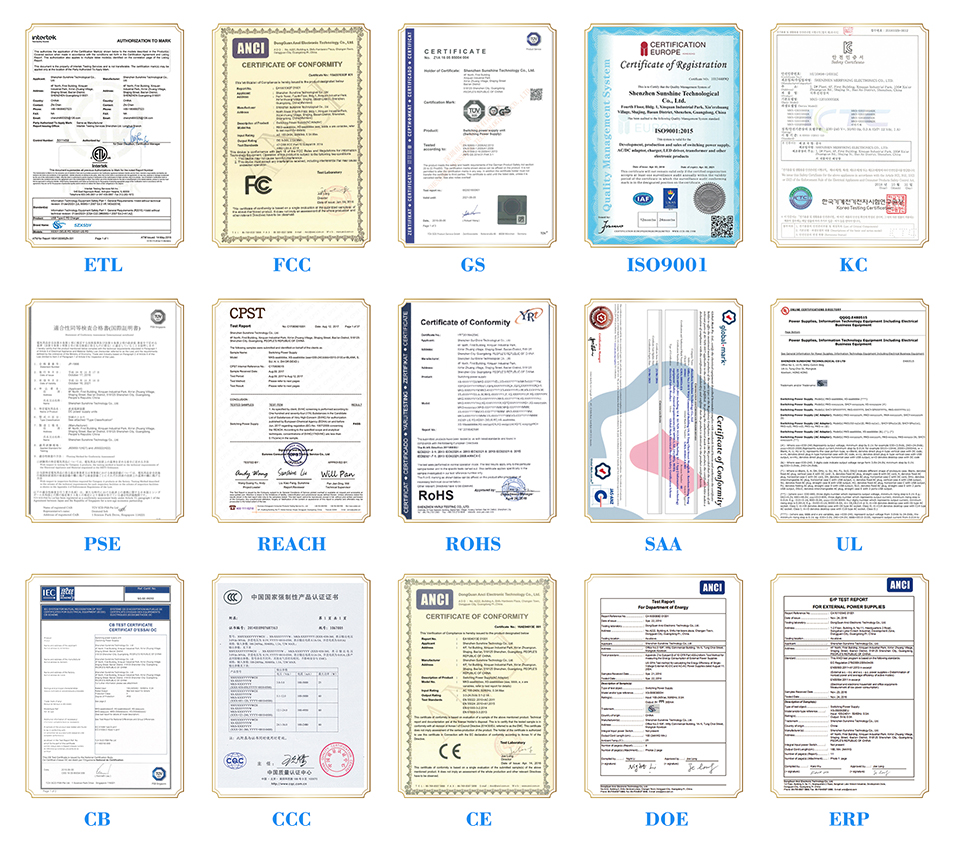

Certification

FQA:

: Are there any certificates for your products?
A:All of our products pass the RoHS 2.0 certification, all the accessorythat is designed for Apple devices have the MFi certification. We alsoprovide specific certifications for related oversea markets: FCC andAmazon UL for the USA, UKCA for the UK,CE for Europe,PSE forJapan, etc.

:Any patent for Vention products?
A: More than 200 product patents has been acquired which includesmultiple industrial design patent and patent for utility models.

: Shipment method?
A: a.International express: DHL/TNT/FEDEX/UPS(For sample)

b.By air(For trial orders)
c.By sea(15-45 days)d.By domestic logistics

;How long will it take for shipment?
A;: For the sample shipment, it will usually takes 3-5 days for domesticdistributors and around 15 days for international post delivery.Largeproduct order will be uncertain due to the different custom clearancesituation.

: Where is your factory located?
A : Our factory is located in Guangdong and Jiangxi Provinc-es of China.
